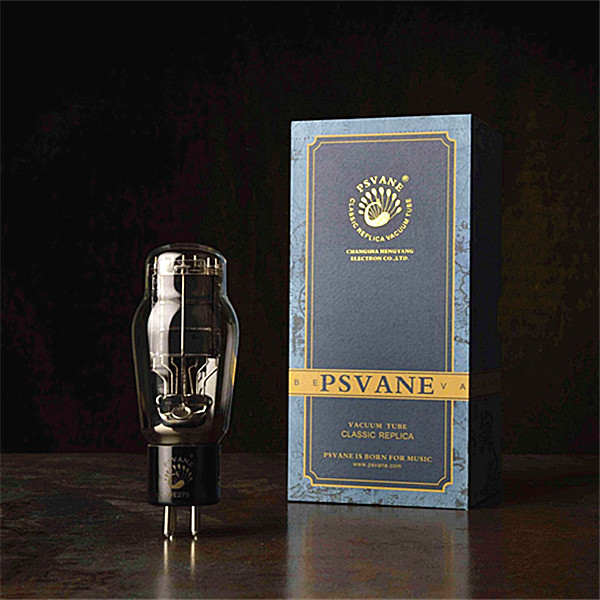

#WE275,PSVANE TUBES,WE-Series.

Name: WE275PSVANE TUBESWESeries
Brand: PSVANE
Price: 1 USD

Quality #WE275,PSVANE TUBES,WE-Series. for sale

Place of Origin : China

Brand Name : PSVANE

Certification : ROHS

Model Number : WE275

Contact Now

Western Electric 275 is one of the rare buried products in all the works of Western Electric Vacuum Tubes.

It's all because the company designed the tube with a 5 volt filament.However,Its sound performance is the best in 2A3 made by other factories.On the basis of keeping the sound characteristics of Western Electric 275,PSVANE changed the 5 volt filament to 2.5 volt and maintained the generality of 2A3.Except that,the two products are almost exactly the same in appearance,structure,material and workmanship.That again shows the concept of "Only the legend can surpass the legend".

Heater

Uf………………2.5V

If…………….... 2.5A

Static Parameter

Ua……………………250V

-Ug………………… 60V

Ia……………………53mA

Gm…………………2.8 mA/V

ri……………………1 KΩ

u ……………………2.8

Pout…………………3.1W

Maximum Rating

Ua……………300V

Pa………17W

with cathode bias………………80 mA

with fixed bias……………70 mA

Direct Interelectrode Capacitances

Grid to plate ……………12PF

Grid to filament ……………6.8PF

Plate to filament……………3.2PF

#WE275,PSVANE TUBES,WE-Series. Images
